黃銅塞帽
產品介紹:
產品材質： 黃銅鍍鎳
產品特性：為預備的孔或多余的孔塞平，使產品美觀，可防水、防塵抗鹽、耐弱酸、酒精、油、油脂及一般溶劑。
防護等級： IP65

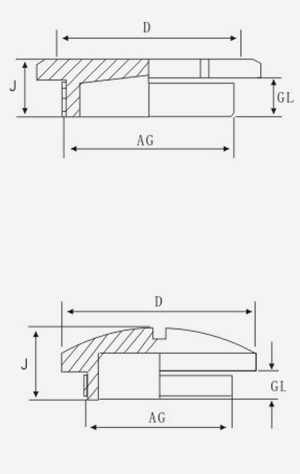

| 黃銅塞帽 | ||||||
| 編號 | 圓形系列?產品編號 | 六角形?系列編號 | 螺紋規格 | 螺紋長度?GL?(mm) | H?(mm) | D?(mm) |
| JX-SM01 | M12A | M12B | M12 | 5 | 8 | 14 |
| JX-SM02 | M16A | M16B | M16 | 6 | 9 | 17 |
| JX-SM03 | M18A | M18B | M18 | 6 | 9 | 20 |
| JX-SM04 | M20A | M20B | M20 | 6.5 | 9.5 | 22 |
| JX-SM05 | M22A | M22B | M22 | 6.5 | 9.5 | 24 |
| JX-SM06 | M24A | M24B | M24 | 7 | 11 | 30 |
| JX-SM07 | M25A | M25B | M25 | 8 | 12 | 39 |
| JX-SM08 | M30A | M30B | M30 | 9 | 15 | 50 |
| JX-SM09 | M32A | M32B | M32 | 10 | 16 | 57 |
| JX-SM10 | M36A | M36B | M36 | 10 | 16 | 64 |
| JX-SM11 | M40A | M40B | M40 | 5 | 8 | 14 |
| JX-SM12 | M47A | M47B | M47 | 6 | 9 | 17 |
| JX-SM13 | M50A | M50B | M50 | 6 | 9 | 20 |
| JX-SM14 | M54A | M54B | M54 | 6.5 | 9.5 | 22 |
| JX-SM15 | M60A | M60B | M60 | 6.5 | 9.5 | 24 |
| JX-SM16 | M63A | M63B | M63 | 6.5 | 10 | 27 |
| JX-SM17 | M72A | M72B | M72 | 6.5 | 10 | 27 |
| JX-SM18 | PG7A | PG7B | PG7 | 6.5 | 10 | 33 |
| JX-SM19 | PG9A | PG9B | PG9 | 7 | 11 | 35 |
| JX-SM20 | PG11A | PG11B | PG11 | 8 | 12 | 39 |
| JX-SM21 | PG13.5A | PG13.5B | PG13.5 | 8 | 13 | 43 |
| JX-SM22 | PG16A | PG16B | PG16 | 9 | 15 | 50 |
| JX-SM23 | PG21A | PG21B | PG21 | 9 | 15 | 55 |
| JX-SM24 | PG29A | PG29B | PG29 | 10 | 16 | 57 |
| JX-SM25 | PG36A | PG36B | PG36 | 10 | 16 | 64 |
| JX-SM26 | PG42A | PG42B | PG42 | 10 | 16 | 66 |
| JX-SM27 | PG48A | PG48B | PG48 | 10 | 16 | 75 |
